National Item Identification Number

01-095-5704
010955704
5305-01-095-5704
5305010955704

National Stock Number

Item Name

SETSCREW

Federal Supply Class

5305

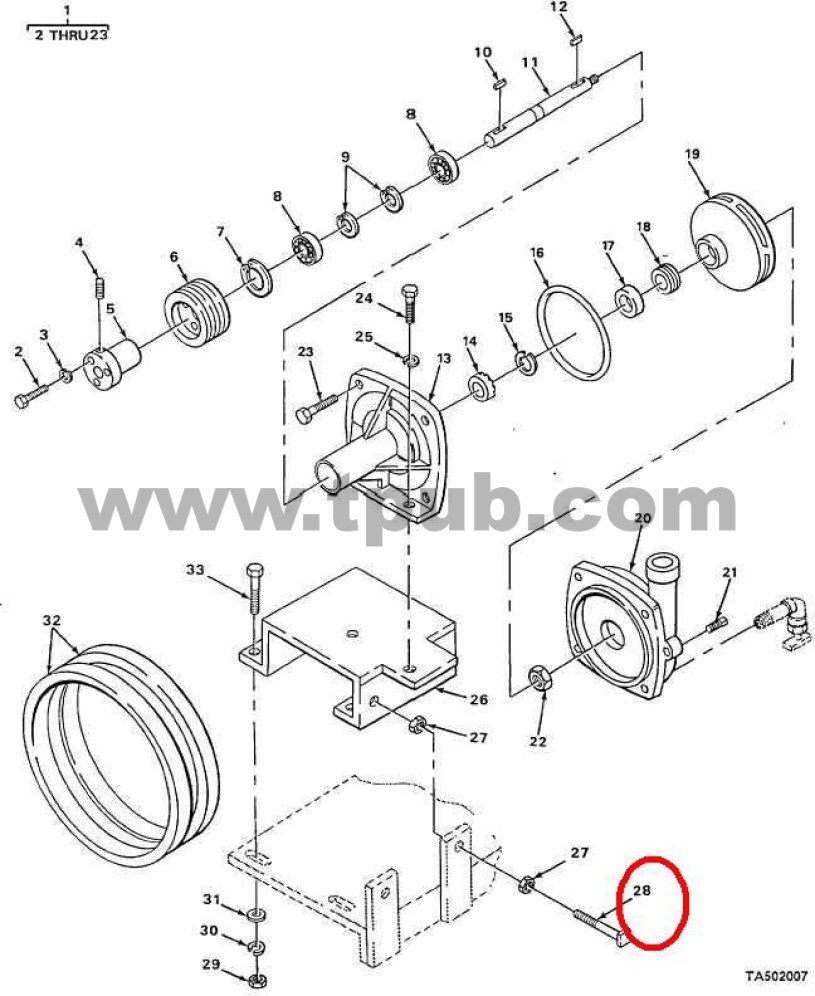

Referenced on: http://constructionmixers.tpub.com//TM-5-3895-372-24P/css/TM-5-3895-372-24P_164.htm
Referenced on: http://constructionmixers.tpub.com//TM-5-3895-372-24P/css/TM-5-3895-372-24P_197.htm
Referenced on: http://constructionmixers.tpub.com//TM-5-3895-372-24P/css/TM-5-3895-372-24P_237.htm

Description

An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.

Commercial and Government Entity Code (Supplier Data)

---

24617

---

---

NSN (National Stock Number) 5305-01-095-5704, 5305010955704 NIIN (National Identification Number) 01-095-5704, 010955704

Part Numbers (Reference Numbers)

137723

Required Categories

THREAD SERIES DESIGNATOR
NOMINAL THREAD DIAMETER
THREAD QUANTITY PER INCH
THR

Required Description

UNC
0.500 INCHES
13
2A
RIGHT-HAND
3.752 INCHES MINIMUM AND
4.000 INCHES MA
