National Item Identification Number

01-095-5702
010955702
5305-01-095-5702
5305010955702

National Stock Number

Item Name

SETSCREW

Federal Supply Class

5305

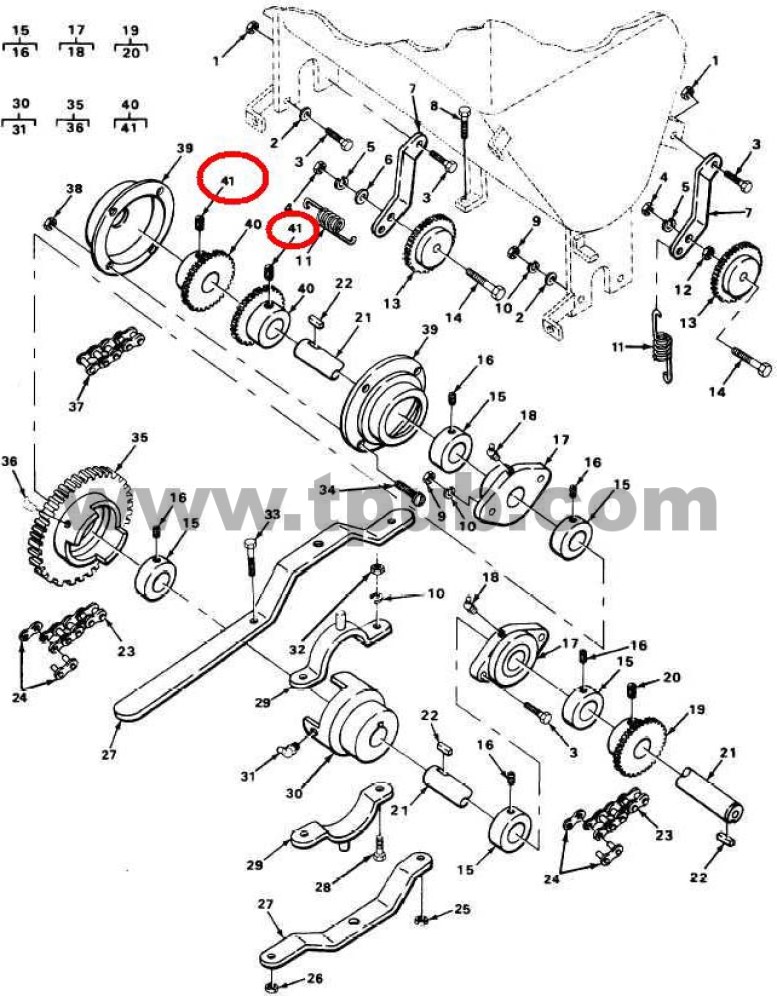

Referenced on: http://constructionmixers.tpub.com//TM-5-3895-372-24P/css/TM-5-3895-372-24P_164.htm
Referenced on: http://constructionmixers.tpub.com//TM-5-3895-372-24P/css/TM-5-3895-372-24P_197.htm
Referenced on: http://constructionmixers.tpub.com//TM-5-3895-372-24P/css/TM-5-3895-372-24P_227.htm

Description

An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.

Commercial and Government Entity Code (Supplier Data)

---

24617

---

---

NSN (National Stock Number) 5305-01-095-5702, 5305010955702 NIIN (National Identification Number) 01-095-5702, 010955702

Part Numbers (Reference Numbers)

139514

Required Categories

THREAD SERIES DESIGNATOR
NOMINAL THREAD DIAMETER
THREAD QUANTITY PER INCH
THR

Required Description

UNF
0.500 INCHES
20
3A
RIGHT-HAND
0.428 INCHES MINIMUM AND
0.448 INCHES MA
