National Item Identification Number
00-879-2736
008792736
5305-00-879-2736
5305008792736
National Stock Number
Item Name
SCREW,CAP,HEXAGON HEAD
Federal Supply Class
5305
Referenced on: http://www.tpub.com/content/misc_manuals_1/TM-11-5985-348-24P/TM-11-5985-348-24P0044.htm
Referenced on: http://www.tpub.com/content/misc_manuals_1/TM-11-5985-348-24P/TM-11-5985-348-24P0071.htm
Referenced on: http://www.tpub.com/content/misc_manuals_1/TM-32-5410-215-14-P/TM-32-5410-215-14-P0067.htm
Referenced on: http://www.tpub.com/content/misc_manuals_1/TM-32-5410-215-14-P/TM-32-5410-215-14-P0108.htmDescription
An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, MACHINE; BOLT, EXTERNALLY RELIEVED BODY; BOLT, INTERNAL WRENCHING; and SCREW, CAP, SOCKET HEAD.
Commercial and Government Entity Code (Supplier Data)
64104
DRESSER INC
WAUKESHA ENGINE DIV
15455 DALLAS PKY NO 1100
ADDISON
TX
75001
262-549-2834
1N109
COAST INDUSTRIAL SUPPLY CO INC
2435 SE 10TH ST
PORTLAND
OR
97214
NSN (National Stock Number) 5305-00-879-2736, 5305008792736 NIIN (National Identification Number) 00-879-2736, 008792736
Part Numbers (Reference Numbers)

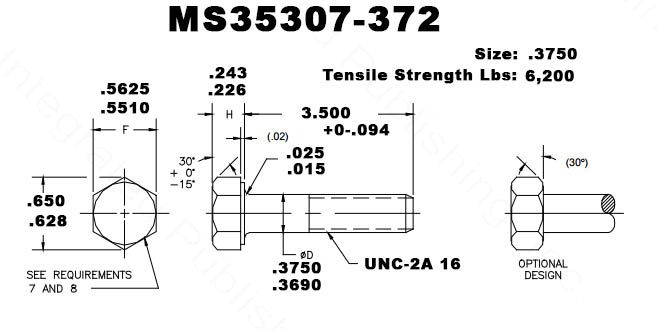

MS35307-372
28315A
3/8-UNCX3 1/2",18-8 STAINLESS
Required Categories
THREAD SERIES DESIGNATOR
NOMINAL THREAD DIAMETER
THREAD QUANTITY PER INCH
THR
Required Description
UNC
0.375 INCHES
16
2A
RIGHT-HAND
1.000 INCHES MINIMUM AND
1.188 INCHES MA
