National Item Identification Number

00-292-6418
002926418
5305-00-292-6418
5305002926418

National Stock Number

Item Name

SCREW,CAP,HEXAGON HEAD

Federal Supply Class

5305

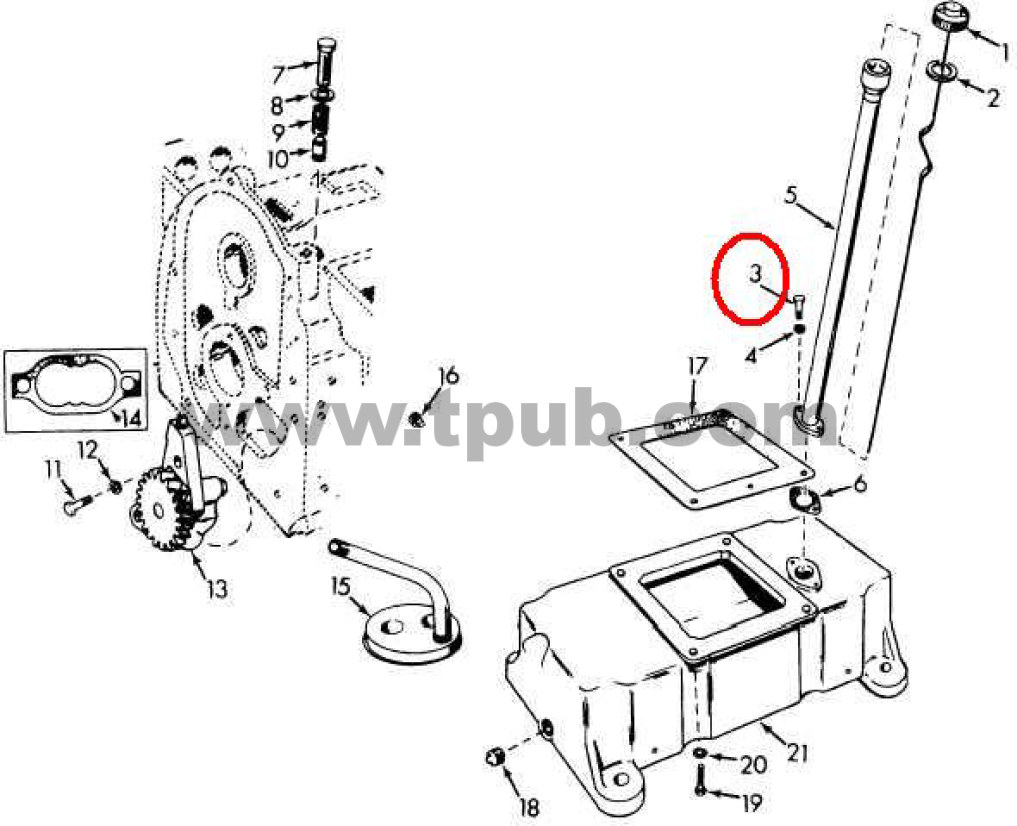

Referenced on: http://www.tpub.com/content/airconditioning/TM-5-4110-234-24P/css/TM-5-4110-234-24P_79.htm

Description

An externally threaded fastener designed for insertion into holes in assembled parts, for mating with a preformed internal thread and for tightening or releasing by torquing the head. The threaded and unthreaded portions are both of the same nominal diameter of 0.190 inch (5 mm) or larger. Head dimensions and sizes of threaded and unthreaded portions shall conform to internationally recognized fastener standards. The thread length being the controlled dimension, the grip length is not specified. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, MACHINE; BOLT, EXTERNALLY RELIEVED BODY; BOLT, INTERNAL WRENCHING; and SCREW, CAP, SOCKET HEAD.

Commercial and Government Entity Code (Supplier Data)

---

35301

---

DRESSER INDUSTRIES INC
LEROI DIV
N MAIN AND RUSSELL RD
90
SIDNEY
OH
45365
937-498-2500

---

NSN (National Stock Number) 5305-00-292-6418, 5305002926418 NIIN (National Identification Number) 00-292-6418, 002926418

Part Numbers (Reference Numbers)

34-413

Required Categories

THREAD SERIES DESIGNATOR
NOMINAL THREAD DIAMETER
THREAD QUANTITY PER INCH
THR

Required Description

UNC
0.250 INCHES
20
3A
RIGHT-HAND
0.625 INCHES MAXIMUM
0.625 INCHES NOMINA
